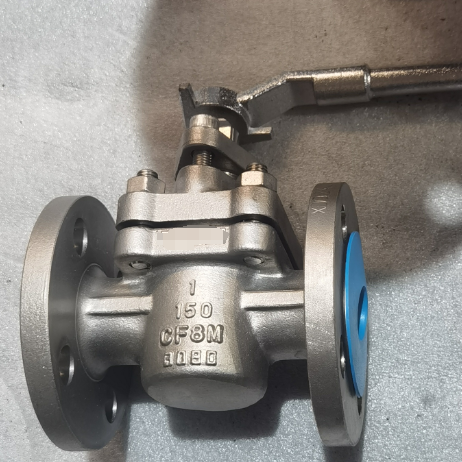

  • SS Non-Lubricated Plug Valve

  • SS Non-Lubricated Plug Valve

    • 0.00
      0.00
Delivery Photo

STANDARD COMPLIANCE:

Basic Design: API 599, ASME B16.34, API 6D, API 6A

Face to Face Dimension: ASME B16.10, API 6A

End Flange Dimension:ASME B16.5, API 6A

B.W. Ends: ASME B16.25

NPS:1/2”～30”

Class:150Lb～1500Lb

Type of Operation: Manual, Gear, Electric, Pneumatic, Hydraulic

Main Material: WCB, WCC, LCB, CF8, CF8M, CF3, CF3M, CF8C, CN7M, A105, F304, F304L, F316, F316L, F321

Inspection & Test: API598 , API 6D, API 6A

Other Special Requirement shall be on request


PRODUCT DESCRIPTION:
Plug valves utilize conical and cylindrical plugs to stop or throttle flow in a system. The plug has an opening in the center that allows for flow through the valve in the open position when the cavity is parallel to the flow. When the controlling lever rotates, the plug inside the valve assembly turns and the cavity is perpendicular to the flow which in turn stops the flow.

Plug valves construction allows for quarter turns  to completely shut off or open flow. We can provide with the different types of plug valves, valve construction and components, typical applications, and maintenance and repair.
