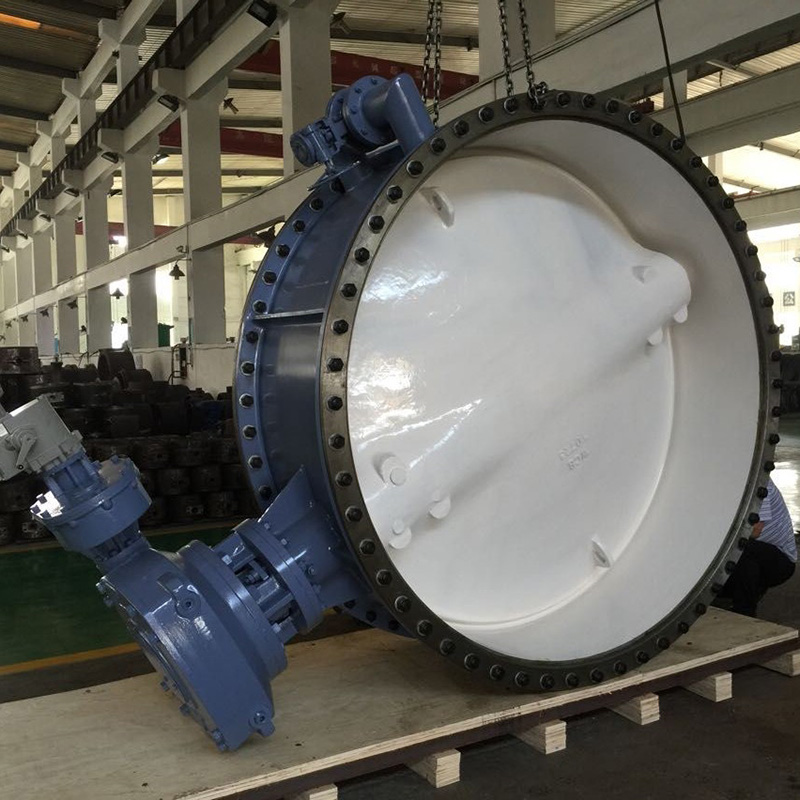

  • Lining Butterfly Valve

  • Lining Butterfly Valve

    • 0.00
      0.00
Delivery Photo


STANDARD COMPLIANCE:

Basic Design: API 609, BS 5155, ASME B16.34, MSS SP-67, MSS SP-68

Face to Face Dimension: BS 5155, API 609,

End Flange Dimension:ASME B16.5, ASME B16.47

B.W. Ends: ASME B16.25

NPS: 2”～80”

Class: 150Lb～600Lb

Type of Operation: Manual, Gear, Electric, Pneumatic, Hydraulic

Main Material: WCB, WCC, LCB, CF8, CF8M, CF3, CF3M, CF8C, CN7M, A105, F304, F304L, F316, F316L, F321

Inspection & Test: API598 , API 6D, API 6A

Other Special Requirement shall be on request


PRODUCT DESCRIPTION:
A butterfly valve is a mechanism that regulates the flow of materials within large pipe diameters by the quarter-turn rotation of a disc.

A rod feeds through the center of a disc and this rod is connected to an actuator that controls the motion of the disc. The disc position is either parallel or perpendicular to the flow media. A butterfly valve differs from other valves because the disc is always in the flow causing a pressure change for any position of the valve



Sound systems reply on dependable valves. Our butterfly control valve selection is made up of disc valves perfectly sized for various applications and made in precise accordance with industry standards.
