Home >> Conventional Valve >> Ball Valve >> Eccentric Semi-ball Valve
  • Eccentric Semi-ball Valve

  • Eccentric Semi-ball Valve

    • 0.00
      0.00

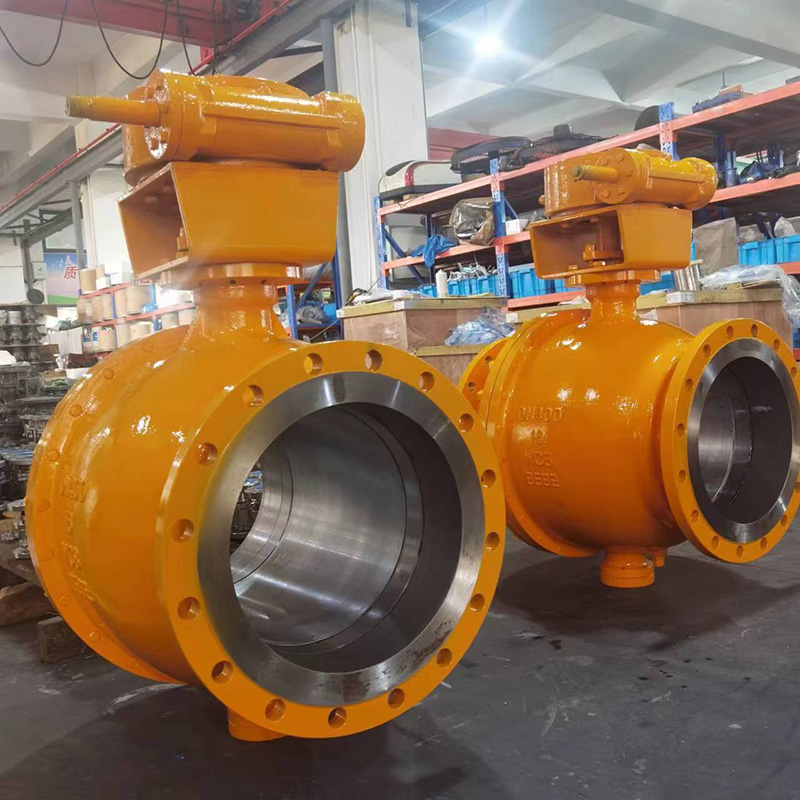

Delivery Photo

STANDARD COMPLIANCE:

Basic Design: API 6D, ASME B16.34, API 608, MSS SP-72, BS 5351

Face to Face Dimension: ASME B16.10, API6D, EN558

End Flange Dimension:ASME B16.5, ASME B16.47, DIN2501

B.W. Ends: ASME B16.25

NPS: 2”～56”

Class:150Lb～2500Lb

Type of Operation: Manual, Gear, Electric, Pneumatic, Hydraulic

Main Material: Alloy-20, F321, F316L, F304L, F316, F304, F9, CF8C,CN7M, CF3M, C12, C5, WC9, WC6, WCB

Inspection & Test: API598 , API 6D

Other Special Requirement shall be on request


PRODUCT DESCRIPTION:
Ball valves work by controlling the flow of a liquid or gas by using a ball or sphere, also having a handle or actuator to stop the flow when required. It is called a ball valve because of its ball or sphere closure unit inside the valve which opens and closes when the lever is turned, controlled flow.
