  • Gate Valve with Rubber lined

  • Gate Valve with Rubber lined

    • 0.00
      0.00

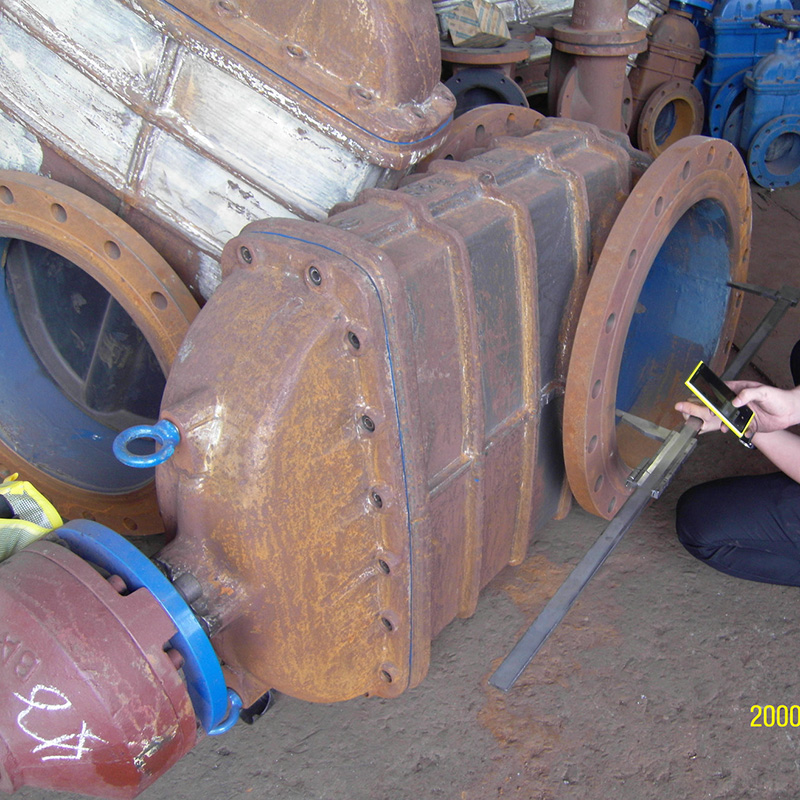

Delivery Photo


STANDARD COMPLIANCE:

Basic Design: API600, BS1414, API6D

Face to Face Dimension: ASME B16.10, API6D, EN558

End Flange Dimension:ASME B16.5, ASME B16.47, DIN2501

B.W. Ends: ASME B16.25

NPS: 2”～60”

Class:150Lb～2500Lb

Type of Operation: Manual, Gear, Electric, Pneumatic, Hydraulic

Main Material: WCB, WCA, WCC, LCB, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, CF8C

Inspection & Test: API598 , GB/T 13927, JB/T 9092

Other Special Requirement shall be on request


PRODUCT DESCRIPTION:

A gate valve is typically used in industrial settings to completely restrict flow, or to fully allow flow when it is in the open position. It achieves this by lowering or raising its obturator from the seating surface. As a result, it usually occupies more space than most types of valves and it not ideal for flow regulation.
